B10 Heavy Duty Long Pipe Aluminum Steel Storage Rack Warehouse Cantilever Racking
Product Details:
| Place of Origin: | China |
| Brand Name: | Huayide |
| Certification: | CE&ISO |
| Model Number: | HYD-CR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | can be negotiable |
| Packaging Details: | Plastic banding+Stretch film wrapped,easy loading and unloading with standard forklift truck or pallet jack . |
| Delivery Time: | 10-20 working days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 900000KGS PER Month |
|
Detail Information |
|||
| Type: | Cantilevered | Feature: | Corrosion Protection |
|---|---|---|---|
| Arm Length: | 300mm~1200mm | Use: | Industrial |
| Surface Treatment: | As Per Your Request | Depth: | Customized |
| Color: | Customized Color | Certification: | ISO |
| Highlight: | Long Pipe Storage Rack,Steel Storage Rack,Cantilever Racking |
||
Product Description
Cantilever Racking
For Long Profiles
——
Cantilever rack which also called arm rack ,is ideal for loads that require no obstruction at the pick face, so that bulky and awkwardly sized or shaped products can be safely stored and accessed. This type of racking allows you to use your warehouse space more efficiently - you do not need to waste horizontal space with awkward posts and columns obstructing storage areas. Items best suited to such a system include furniture, building materials, piping, rolls, appliances, and flooring.You can fit this racking system to your facility by adjusting the shelf height, ensuring that the maximum amount of vertical storage space is maintained. Moreover, the support arms can vary in depth and capacity depending on the type of load. Open rows allow not only secure load support but also easy access - safety, flexibility and selectivity are all maintained.
Cantilever Rack · Warehouse Storage Rack · Made In China
Advantages
—
Cantilever Racking System is: ideal for storing long, irregular or mixed loads, economical, flexible and uniquely designed with:
3 interchangeable systems: light, medium and heavy duty
Heavy structural steel components provide high resistance to impact damage
Standard arm capacities up to 1500kg
Standard arm lengths up to 2000mm
Standard column heights up to 10000mm
Pivot Arm Safety System
Durable galvanised columns, bases and bracing
High visibility safety orange arms, with galvanised also available
Arm nose deflectors
No matter how large, small, long or short the storage problem, the Cantilever Racking System will provide you with an adaptable, strong and practical solution.
Cantilever Rack · Warehouse Storage Rack · Made In China
Feature
—
1. Easier to use
With no front column in the way, faster to load and unload, lowering handling time and costs.
2. More flexible
Loads may be placed anywhere along the entire length of a row on a cantilever rack.
3. More compact
The lack of a front column saves horizontal space and provides more abundant handling clearance.
4. More selective
Any load or storage slot is immediately accessible.
5. More economical
Both reduced handling time and increased space utilization make cantilever racks more cost-efficient. And increase load length increases.
6. More adaptable
Cantilever racks can store nearly any type of load long, bulky, or oddly-shaped.
Cantilever Rack · Warehouse Storage Rack · Made In China

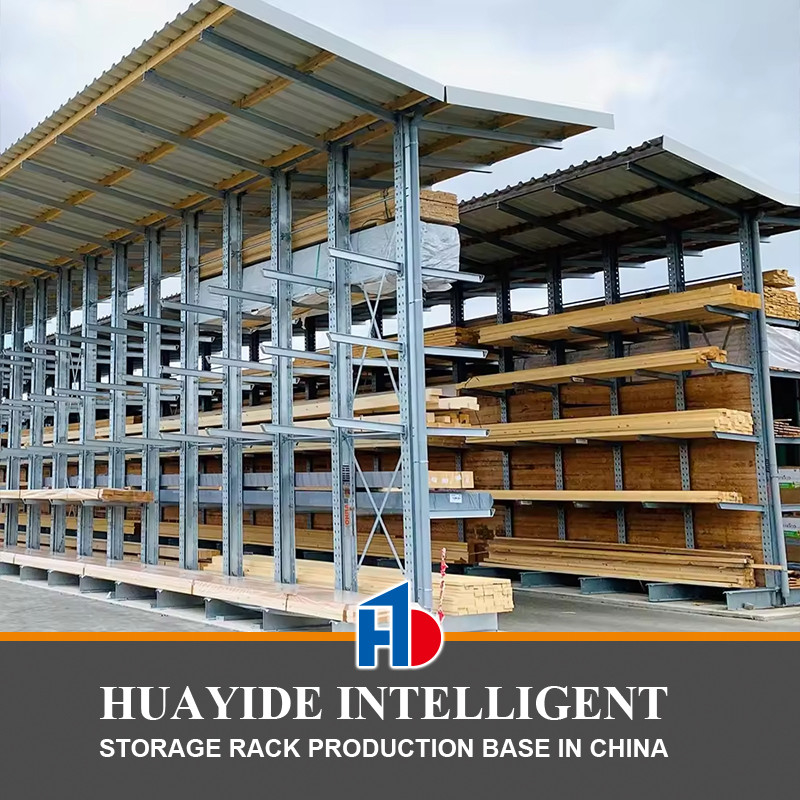

Need outdoor cantilever storage?
—
Covered outdoor cantilever storage for cargo that requires outdoor storage, protects storage materials from harsh weather conditions and significantly reduces costly inventory replacements.
The sloping roof design allows rainwater to run off easily and resists damage from ice, sun and snow.
Structural components treated exclusively by Heda Shelves provide superior strength and long-lasting durability in any weather outdoors.
Cantilever Rack · Warehouse Storage Rack · Made In China
Structural Principles
—
Cantilever Rack · Warehouse Storage Rack · Made In China
Specifications
—
|
Upright Profile (mm) |
Upright Height (mm) |
Upright Single Side Load (kg) |
Upright Double Side Load (kg) |
Arm Length (mm) |
Arm Load (kg) |
|
Light Duty 150*50 |
1500 | 4000 | 8100 | 300 | 270 |
| 2000 | 3100 | 6300 | 400 | 300 | |
| Medium Duty 200*60 | 2500 | 3800 | 7800 | 500 | 440 |
| 3000 | 3300 | 6700 | 600 | 450 | |
| 3500 | 2900 | 5850 | 700 | 500 | |
| Heavy Duty 300*90 | 4000 | 6500 | 13000 | 800 | 690 |
| 4500 | 5850 | 11800 | 900 | 735 | |
| 5000 | 5350 | 10750 | 1000 | 960 | |
| 5500 | 4500 | 9150 | 1200 | 1100 | |
| Surface Treatment | Powder Coating or Galvanized (H type steel cantilever racking) | ||||
Cantilever Rack · Warehouse Storage Rack · Made In China

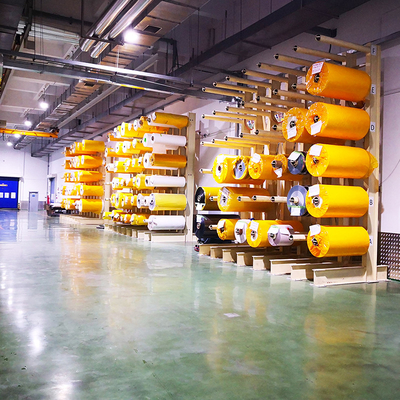

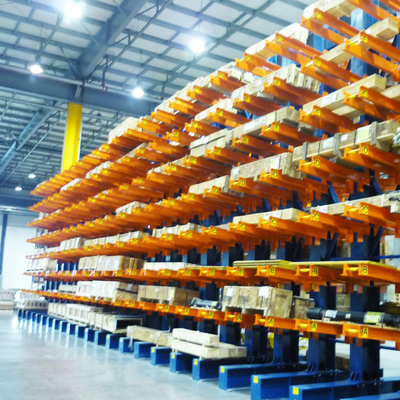

CASE
—
Cantilever Rack · Warehouse Storage Rack · Made In China
Cantilever Rack · Warehouse Storage Rack · Made In China
Cantilever Rack · Warehouse Storage Rack · Made In China
Cantilever Rack · Warehouse Storage Rack · Made In China
Cantilever Rack · Warehouse Storage Rack · Made In China
Cantilever Rack · Warehouse Storage Rack · Made In China
Cantilever Rack · Warehouse Storage Rack · Made In China
Cantilever Rack · Warehouse Storage Rack · Made In China
Cantilever Rack · Warehouse Storage Rack · Made In China

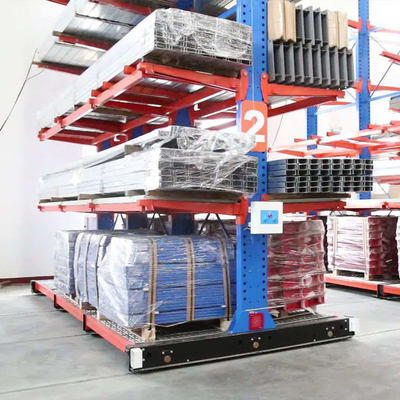

Roll Out Cassette (Honeycomb )
——
Cantilever Rack · Warehouse Storage Rack · Made In China
Ensure the quality of Huayide racking products
—
- The raw material of the shelf is customized from China's large steel group of high quality carbon steel, durable and strong, to ensure the quality of the product from the source.
- The shelf welding adopts dioxygen protection welding, the welding joint has good cracking resistance, small welding deformation, beautiful forming, and does not need slag cleaning.
- Each column and beam of the shelf are designed by professional personnel with professional technology and cut by professional equipment, so as to ensure the accurate size of the shelf.
- Professional spray before treatment, oil removal, rust removal, phosphating, powder, and then in high temperature oven baking molding, wear-resistant, rust proof.
