B13 ASRS Four Way Shuttle System Heavy Duty Higher Automation Warehouse Storage Steel Shuttle Racking
Product Details:
| Place of Origin: | China |
| Brand Name: | Huayide |
| Certification: | CE&ISO |
| Model Number: | HYD-ASRS4W |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | can be negotiable |
| Packaging Details: | Plastic banding+Stretch film wrapped |
| Delivery Time: | 10-20 working days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 900000KGS PER Month |
|
Detail Information |
|||
| Shuttle Self Weightcity: | 280-290kg | Pallet Size: | 1*1.2 Or Customzied |
|---|---|---|---|
| Sub-Rail Height: | 170mm | Driving Motor Power: | 1000W |
| Specification: | Q235 STEEL | Type: | Shuttle Robot |
| Tyoe Of Package: | Carton, Plastics Wrapping Or Non Package | Lifting Type: | Mechanical |
| Highlight: | ASRS,Four Way Shuttle Shuttle Racking System,Steel Gravity Pallet Racking |
||
Product Description

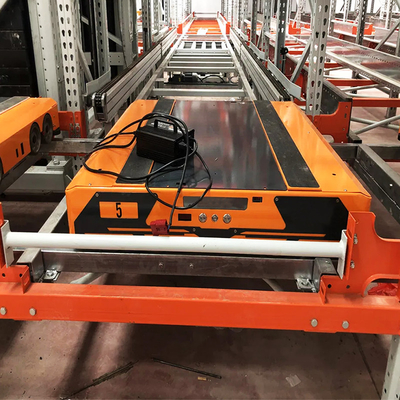

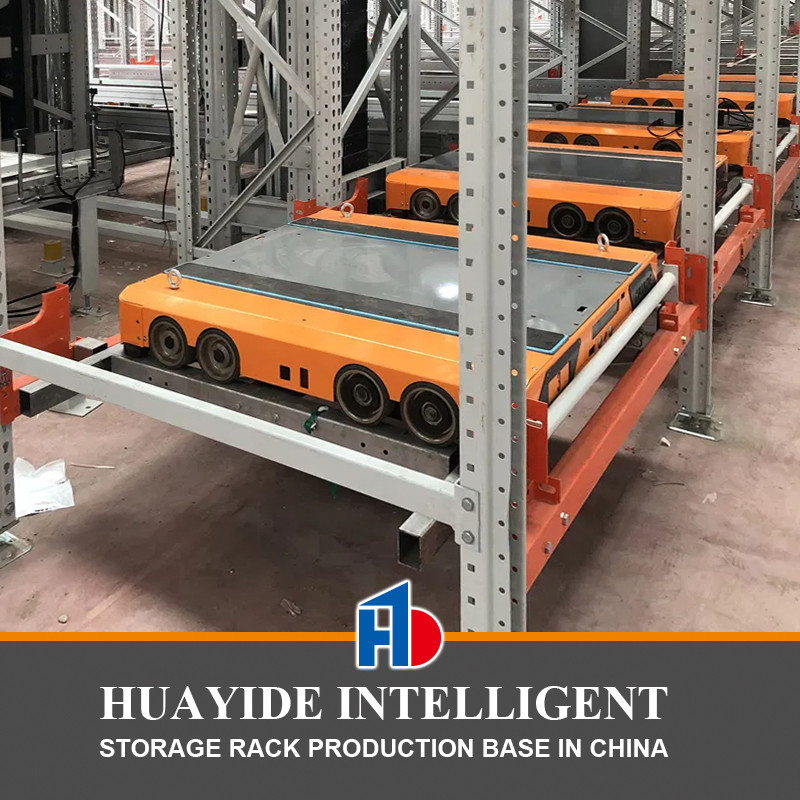

Four-way Shuttle Cart ASRS
——
Four-way shuttle is an intelligent handling device that can achieve both vertical and horizontal walking. It has high flexibility, can change the working lanes arbitrarily, and adjust the storage capacity by increasing or decreasing the number of shuttles. If necessary, the peak value of the system can be adjusted by setting up a dispatching method of the operating fleet to solve the bottleneck of the in and out operation.
Four-way shuttle can be replaced with each other. When a certain shuttle or elevator fails, other shuttles or elevators can be dispatched through the dispatching system to continue to complete the operation, and the storage capacity is not affected. The four-way shuttle is suitable for both low-flow and high-density storage and high-flow and high-density storage. It can maximize efficiency, cost, and resources.
Automated Storage and Retrieval System · Warehouse Storage Rack · Made In China
Four Way Pallet Shuttle Specification
—
| ITEM | Shuttle Body (L*W*H ) | Pallet Dimension |
| Standard Shuttle Dimension | 1100L*980W*150Hmm | 1200W*1000D |
| 1200L*980W*150Hmm | 1200W*1100D | |
| 1300L*980W*150Hmm | 1200W*1200D | |
| Self Weight | 450kg | |
| Loading Capacity | 1000kg | |
| Lifting Distance | 40mm, ≤5s | |
| Working Temperature | 0-40ºC | |
| Communication Mode | Wireless AP | |
| Power Supply | lithium battery, 48V36 /45 /60AH | ≥8H continuous work |
| Driving Speed (empty) | 1.5m/s | |
| Driving Speed (load) | 1.0m/s | |
| Acceleration | 0.3m/S2 | |
| Battery Service Life | 2000 charging times | 1.5-2H charging time |
| Addressing | Laser, ±2mm |
Automated Storage and Retrieval System · Warehouse Storage Rack · Made In China
Characteristics
—
- Shelf height can reach 10 meters or higher, reducing land occupation area
- Reduce warehouse land by more than 50% and reduce labor costs by more than 30%
- Seamless data integration with ERP system and real-time intelligent production scheduling
- Light weight, energy saving and high efficiency
- Flexible storage layout combination method, can realize non-contiguous floors and multi-area interworking layout
Automated Storage and Retrieval System · Warehouse Storage Rack · Made In China

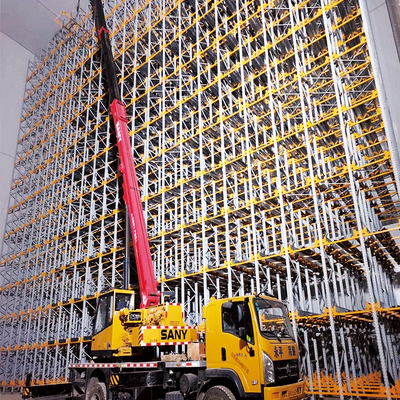

CASE
—
Automated Storage and Retrieval System · Warehouse Storage Rack · Made In China
Automated Storage and Retrieval System · Warehouse Storage Rack · Made In China
Automated Storage and Retrieval System · Warehouse Storage Rack · Made In China
Stacker Crane AS/RS
——
The stacker operates in the horizontal and vertical directions during the warehouse racking by racking and stacker equipement. According to the instructions of the computer, the goods carried by the pallets are stored in the designated goods by the motor-driven fork. Or remove the goods from the designated pallet location.
■ Product Advantages
Customized according to project production, light, heavy, single and double deep; complete categories
Representative manufacturer of domestic European structural design, stable performance of stacker, ensuring long-term reliable operation
Deepen understanding of customer business needs, focusing on optimization design
■ Characteristics
Shelf height can reach 40 meters or higher, reducing land occupation area
Automatic unmanned operation, reducing labor costs
Seamless data integration with ERP system and real-time intelligent production scheduling
Eliminate the chaos in the warehouse and reduce the difficulty of management
Automated Storage and Retrieval System · Warehouse Storage Rack · Made In China
Ensure the quality of Huayide racking products
—
| 1 | The raw material of the shelf is customized from China's large steel group of high quality carbon steel, durable and strong, to ensure the quality of the product from the source. |
| 2 | The shelf welding adopts dioxygen protection welding, the welding joint has good cracking resistance, small welding deformation, beautiful forming, and does not need slag cleaning. |
| 3 | Each column and beam of the shelf are designed by professional personnel with professional technology and cut by professional equipment, so as to ensure the accurate size of the shelf. |
| 4 | Professional spray before treatment, oil removal, rust removal, phosphating, powder, and then in high temperature oven baking molding, wear-resistant, rust proof. |
