B08 Steel Structure Platform Mezzanine Floor Racking Warehouse Storage Rack
Product Details:
| Place of Origin: | China |
| Brand Name: | Huayide |
| Certification: | CE&ISO |
| Model Number: | HYD-CR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD1.1~1.29/KGS |
| Packaging Details: | Plastic banding+Stretch film wrapped,easy loading and unloading with standard forklift truck or pallet jack . |
| Delivery Time: | 10-20 working days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 900000KGS PER Month |
|
Detail Information |
|||
| Features: | Warehouse Storage Rack | Product Name: | Factory Made Steel Structure Platform |
|---|---|---|---|
| Material: | Steel, Q235B | Use: | Warehouse Rack |
| Size: | Customized | Color: | Customized |
| Finish: | Powder Coating | Design Services: | Available |
| Highlight: | Mezzanine Floor Racking,Steel Structure Platform,Steel Platform |
||
Product Description
Steel Structure Garret
Mezzanine Floor Platform
——
What is a structural steel platform?
—
Warehouse mezzanine floor is an elevated platform within a warehouse, creating additional usable space for storage or work areas. These structures maximize vertical space, allowing businesses to efficiently utilize warehouse capacity. Mezzanine floors are versatile and can accommodate various activities, such as additional storage, offices, or assembly lines.
Warehouse mezzanine floors mezzanine platforms contribute to optimizing warehouse organization and increasing overall operational efficiency. With a modular and customizable design, mezzanine floors provide a cost-effective solution for expanding the workspace without the need for extensive construction or relocation.
Mezzanine Floor Platform · Warehouse Storage Rack · Made In China
Product Structure
—
Upright & Main Beam Connect
Both of them are H-steel,Its loading capacity is high and span is long.The major beams are connected by connector piece in each side.It will make the beams moare stable.They are connected with the hanging piece.And the hanging piece is welded on the main beam.So the majorbeam is more stable.
Steel Panel & Guardrail Connect
Steel panel and support beamare connected with hooks.It is very stable.The guardrail hangs on the main beam without holes on the beam.So there is no bad influence on the beam.
Mezzanine Floor Platform · Warehouse Storage Rack · Made In China
Features & Advantages
—
1. All composite structure, and uprights are made from square or round tube, girders are from H type steel. Cold rolling steel is used to make walkways.
2. Special locks are adopted to fix walkway and girders tightly. The walkway has such advantages as good loading capacity, high precision, quite smooth walkway surface, and it's easy to be fixed compared with regular walkway.
3. The Garret is equipped with lighting system, easy for accessing and management of goods. Goods are to be conveyed to the second or third floor by forklifts, lifts or staircases and then moved to the pointed position by cart.
4. Compared with conventional concrete garret, steel structure garret has much more advantages as quickly equipped, competitive cost, simply assembling or dismantling, and moreover, this kind of garret can be installed or dismantled freely from one warehouse to another.
5. The whole garret is support certain amount of columns which fixed on the warehouse ground and distance between columns is less than 6000mm. Height of first level is around 3000mm, and H2500mm for second and third floor level.
6. Loading capacity of floor can be designed to be no more than 1000kg / square meter. This type of garret combines perfectly storage with management of goods by setting offices on the garret.
7. Steel structure garret is mostly used for the third part logistics and mechanical Manufacturing industry.
Mezzanine Floor Platform · Warehouse Storage Rack · Made In China

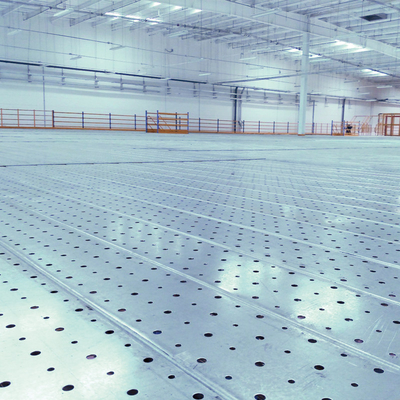

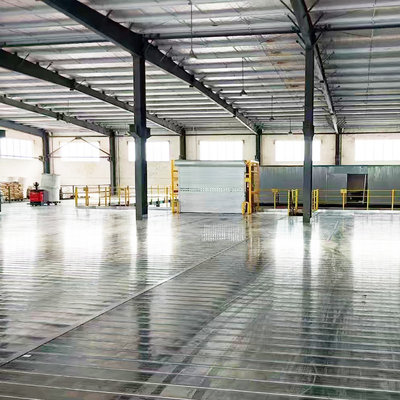

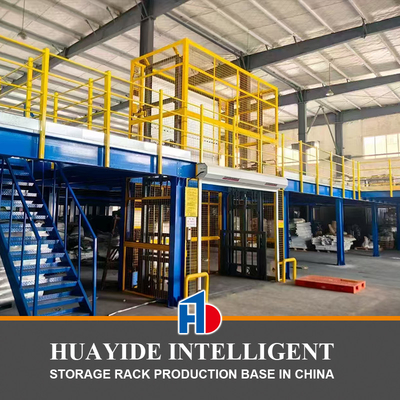

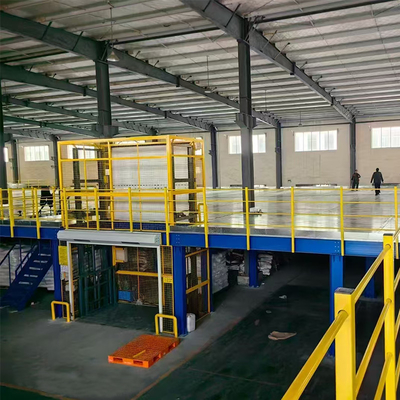

CASE
—
Mezzanine Floor Platform · Warehouse Storage Rack · Made In China
Mezzanine Floor Platform · Warehouse Storage Rack · Made In China
Mezzanine Floor Platform · Warehouse Storage Rack · Made In China
Mezzanine Floor Platform · Warehouse Storage Rack · Made In China
Mezzanine Floor Platform · Warehouse Storage Rack · Made In China
Mezzanine Floor Platform · Warehouse Storage Rack · Made In China
Mezzanine Floor Platform · Warehouse Storage Rack · Made In China
Mezzanine Floor Platform · Warehouse Storage Rack · Made In China
Mezzanine Floor Platform · Warehouse Storage Rack · Made In China
Mezzanine Floor Platform · Warehouse Storage Rack · Made In China
Ensure the quality of Huayide racking products
—
| 1 | The raw material of the shelf is customized from China's large steel group of high quality carbon steel, durable and strong, to ensure the quality of the product from the source. |
| 2 | The shelf welding adopts dioxygen protection welding, the welding joint has good cracking resistance, small welding deformation, beautiful forming, and does not need slag cleaning. |
| 3 | Each column and beam of the shelf are designed by professional personnel with professional technology and cut by professional equipment, so as to ensure the accurate size of the shelf. |
| 4 | Professional spray before treatment, oil removal, rust removal, phosphating, powder, and then in high temperature oven baking molding, wear-resistant, rust proof. |
Our factory has a product exhibition hall and on-site demonstration of vertical warehouse.
Welcome everyone visit and give guidance.
