Two Way Radio Shuttle Racking Pallet Runner Rack System For Cold Storage Cold Chain
Product Details:
| Place of Origin: | China |
| Brand Name: | Huayide |
| Certification: | CE&ISO |
| Model Number: | HYD-SR |
| Document: | Radio Shuttle Pallet Rack.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Plastic Film Protect&Sponge |
| Delivery Time: | Quantity(Kilograms)1 - 10000: Lead Time (Days) 20 ; Quantity(Kilograms)>10000: To Be Negotiated |
| Payment Terms: | L/C, T/T |
| Supply Ability: | <50000 Kilograms |
|
Detail Information |
|||
| Name: | Radio Shuttle Racking For Cold Storage Warehouse | Product Category: | Semi-Automatic Racking |
|---|---|---|---|
| Material: | Q345/355D Steel | Loading Capacity: | Up To 1500Kg/Pallet |
| Surface Treatment: | Powder Coating/Galvanized | Principal: | Fifo&Filo |
| Space Utilization: | 80% Above | Operation Temperature: | -1°C To -30°C |
| Highlight: | Radio Shuttle Rack,pallet runner rack system,Radio Shuttle Pallet Racking |
||
Product Description

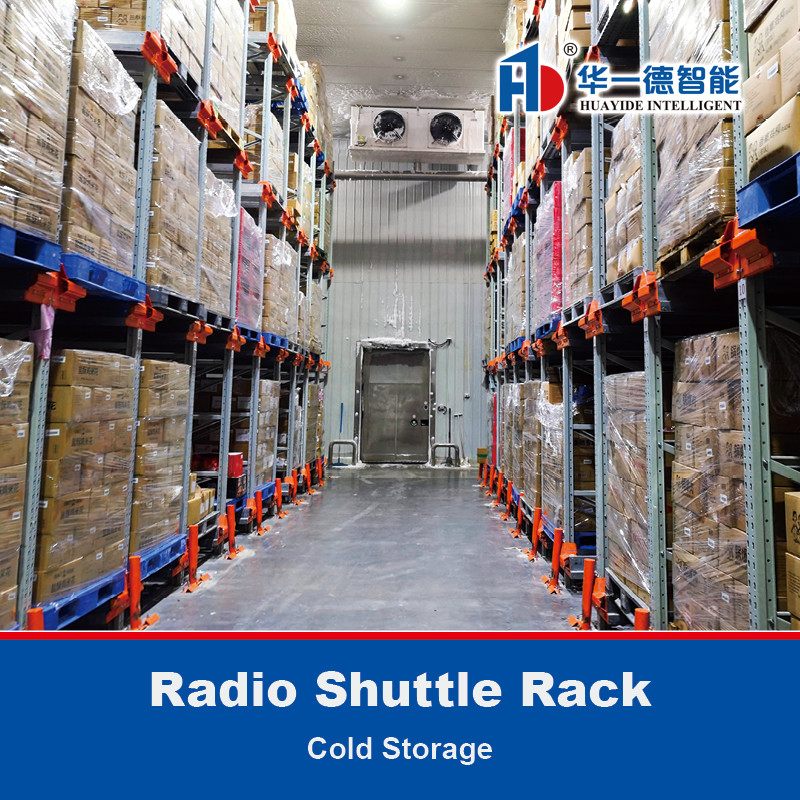

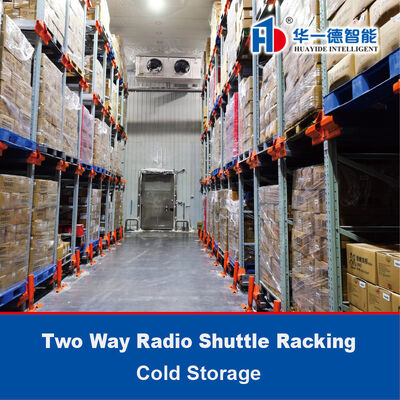

Two Way Radio Shuttle Racking
——
Cold Storage
Operating temperature: -1°C to -30°C
The shuttle racking system is a high-density storage system that uses shuttles to automatically carry loaded pallets on the rail tracks in the rack. The radio shuttles are remotely controlled by an operator. There is an optimum use of storage space, and workplace safety is well maintained because the forklift doesn’t need to be driven in the racks or aisles between racks, therefore, maintenance costs are reduced for the sake of less damage of the racks.
The shuttle racking system can work either as FIFO ( first in first out ) or as last in, LIFO ( fLast In First Out ) , for large quantities of same products like beverage, meat, sea food, etc. It is an ideal solution in cold storage warehouse with temperatures of down to -30°c.
because the space utilization is vital to cold storage warehouse investment.It is also possible to control the inventory through a system of sensors which count the stored pallets, and the gap between pallets are adjustable for compacting the storage space or ventilating the cold air better.
● Customization
Please let us know the following information for a quick quote: 1. The size of your warehouse; 2. Shelf width and depth; 3. Shelf system height; 4. How many layers do you want; 5. The bearing capacity of each layer; 6. All the colors you want.
We are one of the professional factories in china that are good at the planning, design, manufacture and installation of shuttle racking system. If you have any inquiry of radio pallet shuttle rack, welcome to contact us. And the customized orders are also welcome.
● The working principle of High efficient shuttle racking system for cold warehouse storage:
Inventory: the goods are put on the front end of the storage tunnels by the forklift truck, through radio remote control shuttles, can carry pallets of goods in track operation;
Pick: radio remote control shuttle carries the pallet from the farthest end of the storage tunnel to the nearest end of the racking system, put down the pallet from the racking system by the forklift truck;
Mobile shuttle : the shuttle can be place in different storage tunnel by the forklift, several storage tunnels can share a shuttle. The quantity of shuttle is depend on the depth of the storage tunnel, total of goods, shipping quantity, shipment frequency and other factors;
Radio Shuttle Racking · Warehouse Storage Rack · Made In China
Case
——
Radio Shuttle Racking · Warehouse Storage Rack · Made In China
Radio Shuttle Racking · Warehouse Storage Rack · Made In China
Radio Shuttle Racking · Warehouse Storage Rack · Made In China
Accessories
——

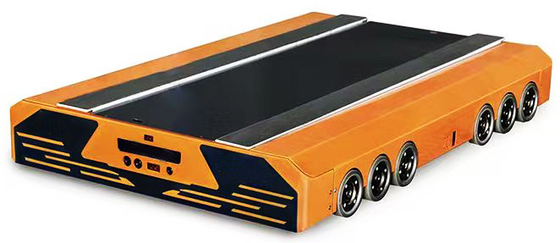

»» Two Way Radio Shuttle Car »»
Battery Charging Equipment
Rescue Car
»» Very Narrow Aisle Fork-type Autonomous Mobile Robot »»
Radio Shuttle Racking · Warehouse Storage Rack · Made In China
Product Structure
——
| 1 ) Column | 2 ) Adjustable feet | 3 ) Frame Spacer | 4 ) Diagonal Brace |
| 5 ) Lateral Bracing | 6 ) Rail support Beam | 7 ) Rail Bracket | 8 ) Pallet Rail |
| 9 ) Pallet Guide Plate(Entry Guide) | 10 ) Shuttle Cart Stopper | 11 ) Lateral Bracing | |
| 12 ) Forklift Stopper | 13 ) Radio Shuttle | 14 ) Remote Control | |
Radio Shuttle Racking · Warehouse Storage Rack · Made In China
Product Advantage
——
Goods of large quantity and few kinds: food, beverage, chemical, tobacco and other single kinds of items and of large quantity, etc.
Refrigeratory exercise: reduce low temperature working time, improve work efficiency and operation safety.
Deadline management: articles on strict requirements batch, require FIFO operations management warehouse
Increase storage capacity: the limited storage space, need to maximize the use of space of warehouse.
Radio Shuttle Racking · Warehouse Storage Rack · Made In China
Product Packaging And Transportation
——
Radio Shuttle Racking · Warehouse Storage Rack · Made In China
Ensure the quality of Huayide racking products
—
| 1 | The raw material of the shelf is customized from China's large steel group of high quality carbon steel, durable and strong, to ensure the quality of the product from the source. |
| 2 | The shelf welding adopts dioxygen protection welding, the welding joint has good cracking resistance, small welding deformation, beautiful forming, and does not need slag cleaning. |
| 3 | Each column and beam of the shelf are designed by professional personnel with professional technology and cut by professional equipment, so as to ensure the accurate size of the shelf. |
| 4 | Professional spray before treatment, oil removal, rust removal, phosphating, powder, and then in high temperature oven baking molding, wear-resistant, rust proof. |
