Cold Storage Warehouse Pallet Stacker Crane ASRS Logistics Center Automatic Storage And Retrieval System
Product Details:
| Place of Origin: | China |
| Brand Name: | Huayide |
| Certification: | CE&ISO |
| Model Number: | Cold Storage ASRS |
| Document: | Stacker Crane ASRS.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Plastic Film Protect&Sponge |
| Delivery Time: | Negotiated |
| Payment Terms: | L/C, T/T |
| Supply Ability: | <50000 Kg |
|
Detail Information |
|||
| Name: | Cold Chain AS/RS | Product Category: | Fully Automated Storage System |
|---|---|---|---|
| Pallet Size: | 1*1.2 Or Customzied | Surface Treatment: | Powder Coating/Galvanized |
| Operating Temperature: | -18°C | Space Utilization: | Ultra-High Density Storage |
| Material: | Steel Q235 | Connection: | WMS |
| OEM / ODM: | Acceptable | Function: | Large Load Capacity Warehouse Storage |
| Highlight: | Cold Storage Warehouse,Pallet Stacker Crane ASRS,Cold Storage ASRS |
||
Product Description
Cold Storage Warehouse
——
Pallet Stacker Crane ASRS
Operating temperature: -18°C
Cold chain AS/RS refers to a specific application form of automatic three-dimensional storage applied in cold chain low-temperature warehouse.
The cold chain AS/RS needs to store and store goods in the closed cold storage. Therefore, the internal space should be completely isolated, so that the cold air will not overflow and the operator can also work at normal temperature.
In the cold chain AS/RS, the automatic conveyor system controls the goods to reach the corresponding stacker, and then the stacker operates. Similarly, the stacker cooperates with the transport belt for shipment.
Cold Storage Warehouse ASRS · Warehouse Storage Rack · Made In China
Engineering Case Ⅰ
——
Anhui Dacheng Food Cold Storage

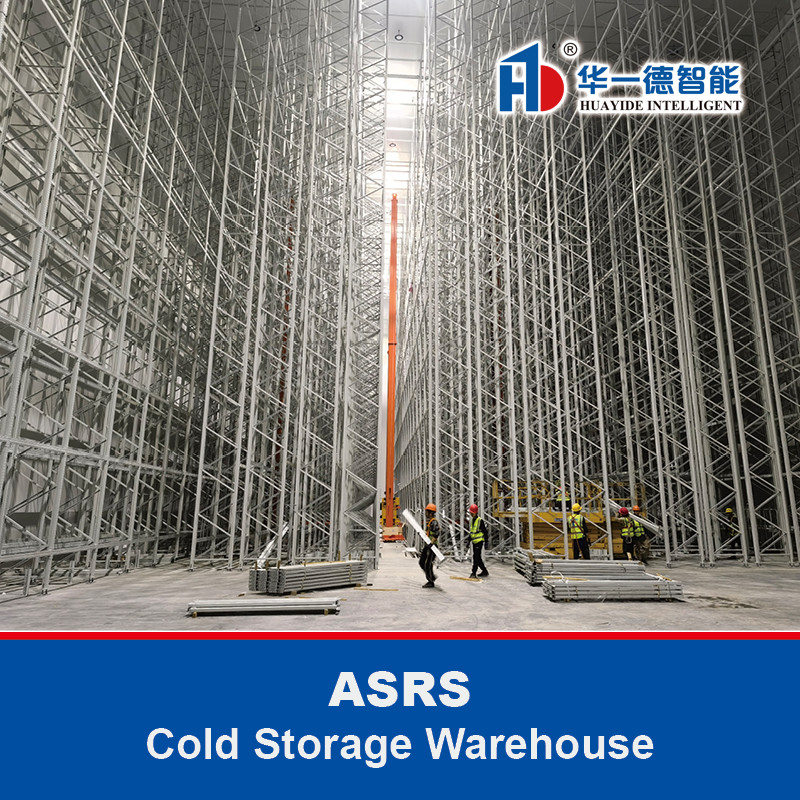

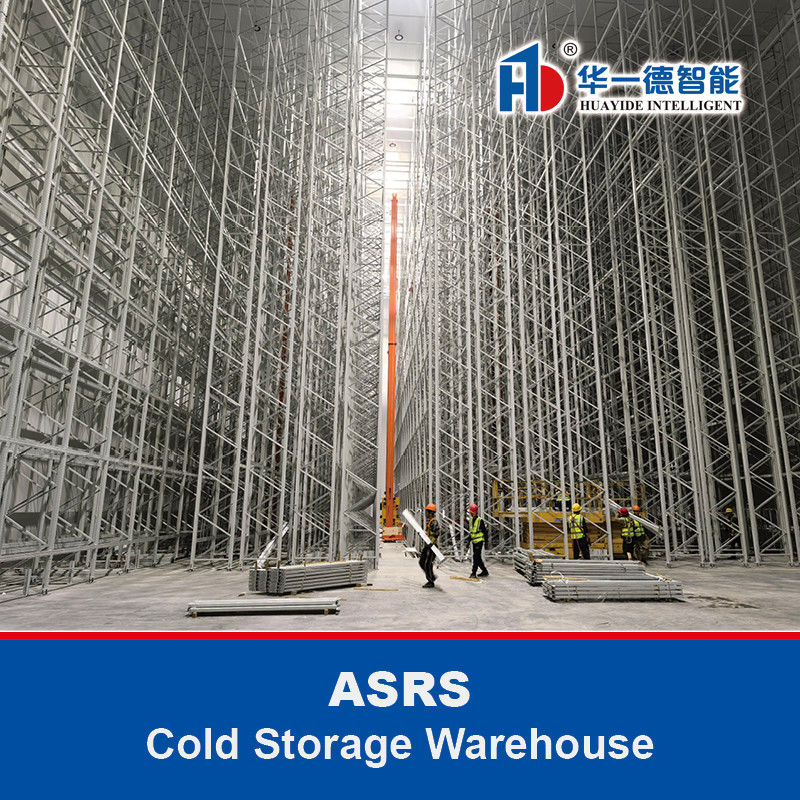

Intelligent Cold Storage:Temperature -18 ℃, Height 22m
|
Warehouse System |
8 lanes, over 16000 cargo locations, Storage capacity: 8000 tons |
Automated three-dimensional warehouse: 4 floors, 972 storage locations |
| Flat finished product warehouse: 3 floors, 483 storage locations | ||
| Flat raw material warehouse | ||
|
Advantage |
Realize precise zoning management of goods of different categories and stages of circulation, making warehouse layout more reasonable and scheduling more efficient. | |
Cold Storage Warehouse ASRS · Warehouse Storage Rack · Made In China
Temperature control design
-18 ℃ precise temperature control
The system has been specially optimized for mechanical reliability in extreme environments, with a focus on ensuring stable operation under ultra-low temperature conditions.
1) Hardware configuration: The system adopts a stacker crane main structure made of low-temperature resistant special steel, combined with anti freezing transmission components and sealing components, to ensure that the equipment maintains high strength and flexibility in low-temperature environments.
2) Electrical system: Select wide temperature range components and integrate intelligent temperature control modules to effectively avoid condensation and circuit aging problems.
Cold Storage Warehouse ASRS · Warehouse Storage Rack · Made In China
Intelligent Device
—
1) 5G AGV car: precise shuttle in the picking area, efficient completion of cargo scheduling and transportation, fast response speed, high positioning accuracy
2) 6 high-speed stacker cranes+RGV rail cars+chain hoists: constitute a millisecond level response to complete the lifting, translation, and storage of goods, greatly improving operational efficiency
3) Fast doors, chain machines, and drum machines: form a "seamless connection channel" to achieve smooth docking between the production line and the warehouse area, allowing goods to flow without any lag or delay throughout the entire process.
4) The PLC electrical control system, WCS warehouse control system, and WMS warehouse management system have achieved digital management of inventory, intelligent scheduling of orders, and precise traceability throughout the entire process, making every shipment's entry, handling, shelving, and exit traceable and accurately controllable.

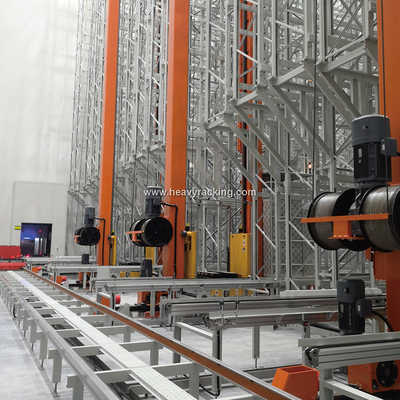

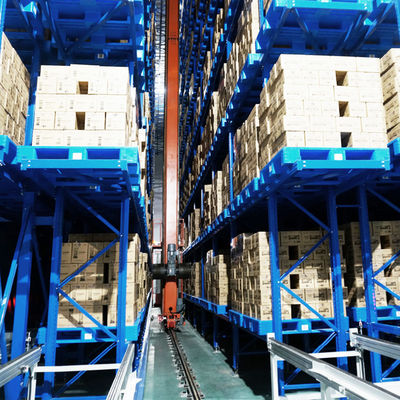

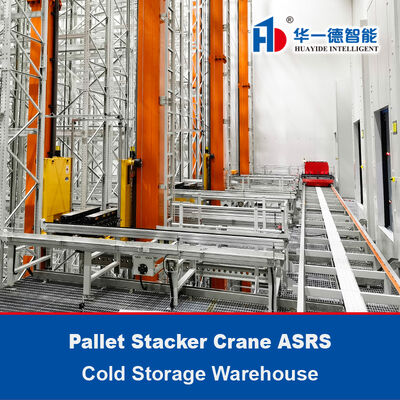

Pallet Stacker Crane(Floor Supported Storage And Retrieval Machine)
RGV(Rail Guided Vehicle)
Pallet Vertical Elevator
Conveyor Sorting System
Picking Screen / Scan The Ring
Vehicle weighing system / AGV Handling
Cold Storage Warehouse ASRS · Warehouse Storage Rack · Made In China
Homework mode: Unmanned operation
In this -18 ℃ low-temperature cold storage, high-speed stacker cranes operate smoothly between shelves over 20 meters high, RGV rail cars shuttle back and forth, and 5G AGV small cars transport goods accurately. The entire process is automatically transferred from goods storage and handling to shelving and outbound.
This minimalist operation mode not only significantly reduces labor costs and operational risks in low-temperature environments, but also improves the efficiency of inbound and outbound operations by several times, perfectly adapting to the warehousing needs of large-scale production in enterprises.
Cold Storage Warehouse ASRS · Warehouse Storage Rack · Made In China
Project scene
—
Cold Storage Warehouse ASRS · Warehouse Storage Rack · Made In China
Cold Storage Warehouse ASRS · Warehouse Storage Rack · Made In China
Cold Storage Warehouse ASRS · Warehouse Storage Rack · Made In China
Cold Storage Warehouse ASRS · Warehouse Storage Rack · Made In China
Cold Storage Warehouse ASRS · Warehouse Storage Rack · Made In China
Cold Storage Warehouse ASRS · Warehouse Storage Rack · Made In China
Cold Storage Warehouse ASRS · Warehouse Storage Rack · Made In China
Cold Storage Warehouse ASRS · Warehouse Storage Rack · Made In China
Planning and Construction
—
Commissioned And Put Into Operation
Engineering Case Ⅱ
——
Aice Indonesia
| ASRS Bheight: 24 m | Number of cargo spaces: 10260 | Put into use: August 2018 |
| Main equipment: 5 sets of double extension and 1 set of single extension stacker cranes, 120 sets of conveyors, and other supporting products. | ||
Cold Storage Warehouse ASRS · Warehouse Storage Rack · Made In China
Optional Supporting Equipment
——
Cold Storage Warehouse ASRS · Warehouse Storage Rack · Made In China
Warehouse Safety Barrier
—
Cold Storage Warehouse ASRS · Warehouse Storage Rack · Made In China
Ensure the quality of Huayide racking products
—
| 1 | The raw material of the shelf is customized from China's large steel group of high quality carbon steel, durable and strong, to ensure the quality of the product from the source. |
| 2 | The shelf welding adopts dioxygen protection welding, the welding joint has good cracking resistance, small welding deformation, beautiful forming, and does not need slag cleaning. |
| 3 | Each column and beam of the shelf are designed by professional personnel with professional technology and cut by professional equipment, so as to ensure the accurate size of the shelf. |
| 4 | Professional spray before treatment, oil removal, rust removal, phosphating, powder, and then in high temperature oven baking molding, wear-resistant, rust proof. |
Our factory has a product exhibition hall and on-site demonstration of vertical warehouse.
Welcome everyone visit and give guidance.
