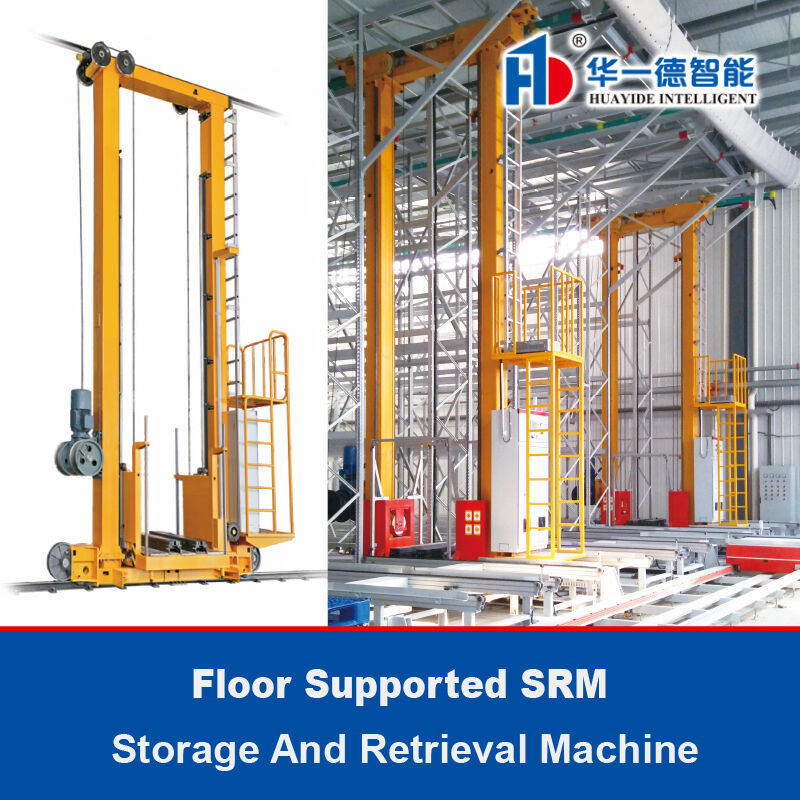

Stacker Crane Floor Supported SRM Storage And Retrieval Machine ASRS Automatic Storage And Retrieval System
Product Details:
| Place of Origin: | China |
| Brand Name: | Huayide |
| Certification: | ISO,CE |
| Model Number: | Floor Supported SRM |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1000kgs |
|---|---|
| Price: | USD1.1~1.29/KGS |
| Packaging Details: | Plastic banding+Stretch film wrapped, |
| Delivery Time: | around 15 working days |
| Supply Ability: | 600000KGS per month |
|
Detail Information |
|||
| Name: | Heavy Duty Pallet Racking System | Loading Capacity: | 500-4000kg/Layer |
|---|---|---|---|
| Feature: | Save Space | Height: | 4000-11500mm |
| Width: | 700-1400mm | OEM & ODM: | Provided |
| Material: | Q235 Steel | Surface Treatment: | Powder Coated |
| Layers: | Customize | ||
| Highlight: | Storage And Retrieval Machine,Automatic Storage And Retrieval System,Stacker Crane |
||
Product Description
● Efficient Automated Movement
Stacker Crane is the storage & retrieval device in AS/RS. Normally has single upright and double uprights structure. It complete the operation demand by walking, lifting and fork driving mechanism. We adopt advanced servo control system and absolute addressing system for full closed loop control. By cooperating with barcode and laser rangefinder, our stacker crane achieve running high-precisely. The maximum loading capcity up to 8 tons. Maximum speed up to 400m/min.
Stacker Crane AS/RS for pallets is an automated system that efficiently stores and retrieves goods, replacing manual warehousing tasks.
The storage and retrieval machine(SRM) operate as a crane that moves horizontally within a single aisle.
Stacker cranes are machines designed to store and retrieve pallets automatically. They move in length, height, and depth to load and unload goods from racking structures in a highly agile, precise manner.
HYD stacker cranes are equipped with state-of-the-art technology, significantly increasing warehouse productivity and maximising space utilisation to boost storage capacity. Moreover, they help reduce errors and risks associated with manual operations.
Stacker Crane · SRM· Storage And Retrieval Machine· ASRS · Automatic Storage And Retrieval System· Made In China
● Storage / Retrieval Machine (S/RM)
Our S/RM enables efficient horizontal and vertical positioning movement within the AS/RS, providing versatility across many applications regardless of depth, height, or width constraints.
Double Mast Design: Provides added stability for heavier loads and higher speeds, supporting heights up to 140 feet.
High Speed: Achieves horizontal speeds of up to 900 ft./min and vertical speeds of 400 ft./min.
Load Capacity: Capable of handling loads up to 2x3,500 lbs for dual-load machines, and up to 5,000 lbs for single-load machines.
Stacker Crane · SRM· Storage And Retrieval Machine· ASRS · Automatic Storage And Retrieval System· Made In China

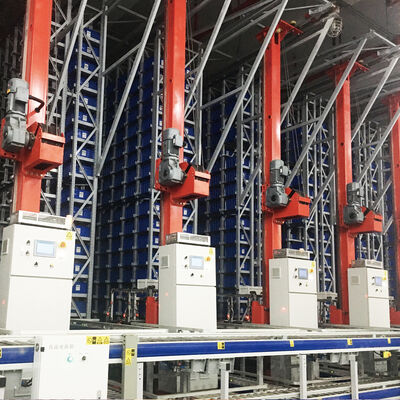

Production Scenarios
—
At HYD, we are a premier designer and manufacturer of material handling equipment and systems. One of our core product offerings is stacker cranes, which are available in standard and custom variations. Key features include:
1) Stacker Crane Controls up to 6000kgs. load capacity
2) Compatibility with multiple lifting attachments, carriages, and forks
3) User-friendly design with four motion motorized movement and pushbutton operator controls
4) Solid-state controls with variable speeds capabilities for smooth and precise positioning
5) 4-Bar insulated conductor system for trouble-free and continuous power supply
6) Trolley wheels that remain within bridge beams to prevent potential derailment
7) On-board operator cage, two hoist brakes, hoist overweight limit, hoist free fall catching system
8) Narrower aisle space requirements than conventional forklifts
9) Maximum stability at high positions, minimum sway at any elevation
Stacker Crane · SRM· Storage And Retrieval Machine· ASRS · Automatic Storage And Retrieval System· Made In China
Product Packaging And Transportation
——
Stacker Crane · SRM· Storage And Retrieval Machine· ASRS · Automatic Storage And Retrieval System· Made In China
Ensure the quality of Huayide racking products
—
| 1 | The raw material of the shelf is customized from China's large steel group of high quality carbon steel, durable and strong, to ensure the quality of the product from the source. |
| 2 | The shelf welding adopts dioxygen protection welding, the welding joint has good cracking resistance, small welding deformation, beautiful forming, and does not need slag cleaning. |
| 3 | Each column and beam of the shelf are designed by professional personnel with professional technology and cut by professional equipment, so as to ensure the accurate size of the shelf. |
| 4 | Professional spray before treatment, oil removal, rust removal, phosphating, powder, and then in high temperature oven baking molding, wear-resistant, rust proof. |
Stacker Crane · SRM· Storage And Retrieval Machine· ASRS · Automatic Storage And Retrieval System· Made In China
